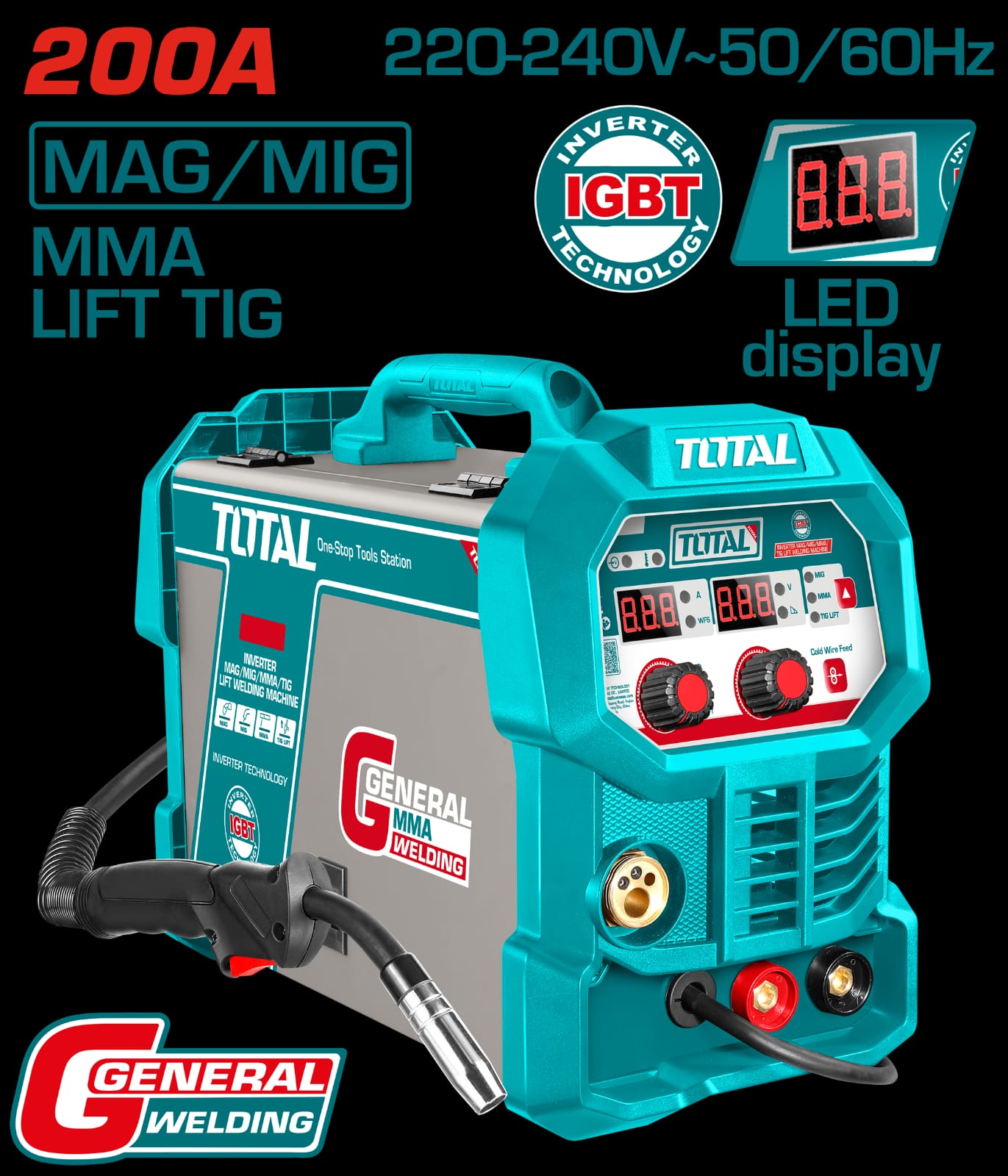

Total 200A Inverter MAG/MIG/MMA/TIG Lift Welding Machine

Multi-process inverter welding machine designed for fabrication, repair work, workshop welding, metal maintenance, and general welding applications. Supports MAG, MIG, MMA, and Lift TIG welding, making it suitable for users who need one machine for different welding tasks.

✨ Key Features

✅ 4-in-1 Welding Function
Supports MAG, MIG, MMA, and Lift TIG welding for flexible use across different welding applications.

⚡ 200A Output Current
Delivers adjustable welding output from 15-200A for MAG/MIG, MMA, and Lift TIG welding.

🔥 IGBT Inverter Technology
Built with inverter IGBT technology for stable welding performance, efficient operation, and smoother arc control.

📟 LED Display
Equipped with an LED display for easier reading and adjustment of welding settings.

🔩 Built-In Wire Feeder
Comes with a built-in wire feeder for convenient MIG/MAG welding operation.

🧵 Supports 5Kg Wire Spool
Designed to work with up to 5Kg wire spool, making it suitable for regular workshop use.

🎚️ Adjustable Wire Speed
Wire speed range of 2-11m/min allows better control depending on the welding job.

🛠️ Wide Wire & Electrode Compatibility
Supports 0.6mm, 0.8mm, 0.9mm, and 1.0mm welding wire, plus 1.6-4.0mm MMA electrodes.

📦 Complete Accessories Included
Comes with electrode holder, earth clamp, wire brush, helmet, and MIG torch for ready-to-use welding setup.

📋 Specifications

Product Type: Inverter MAG/MIG/MMA/TIG Lift Welding Machine
Input Voltage: 1~220-240V
Frequency: 50/60Hz
MAG/MIG Output Current: 15-200A
MMA Output Current: 15-200A
Lift TIG Output Current: 15-200A
Duty Cycle: 30% @ 40℃
Display: LED display
No-Load Voltage: 80V
Wire Feeder: Built-in wire feeder
Wire Spool Capacity: Available for 5Kg wire spool
Welding Wire Size: 0.6 / 0.8 / 0.9 / 1.0mm
Wire Speed: 2-11m/min
MMA Electrode Diameter: 1.6-4.0mm

Included Accessories:
1 Pcs electrode holder with cable
1 Pcs earth clamp with cable
1 Pcs wire brush
1 Pcs helmet
1 Pcs MIG torch
Packing: Color box
