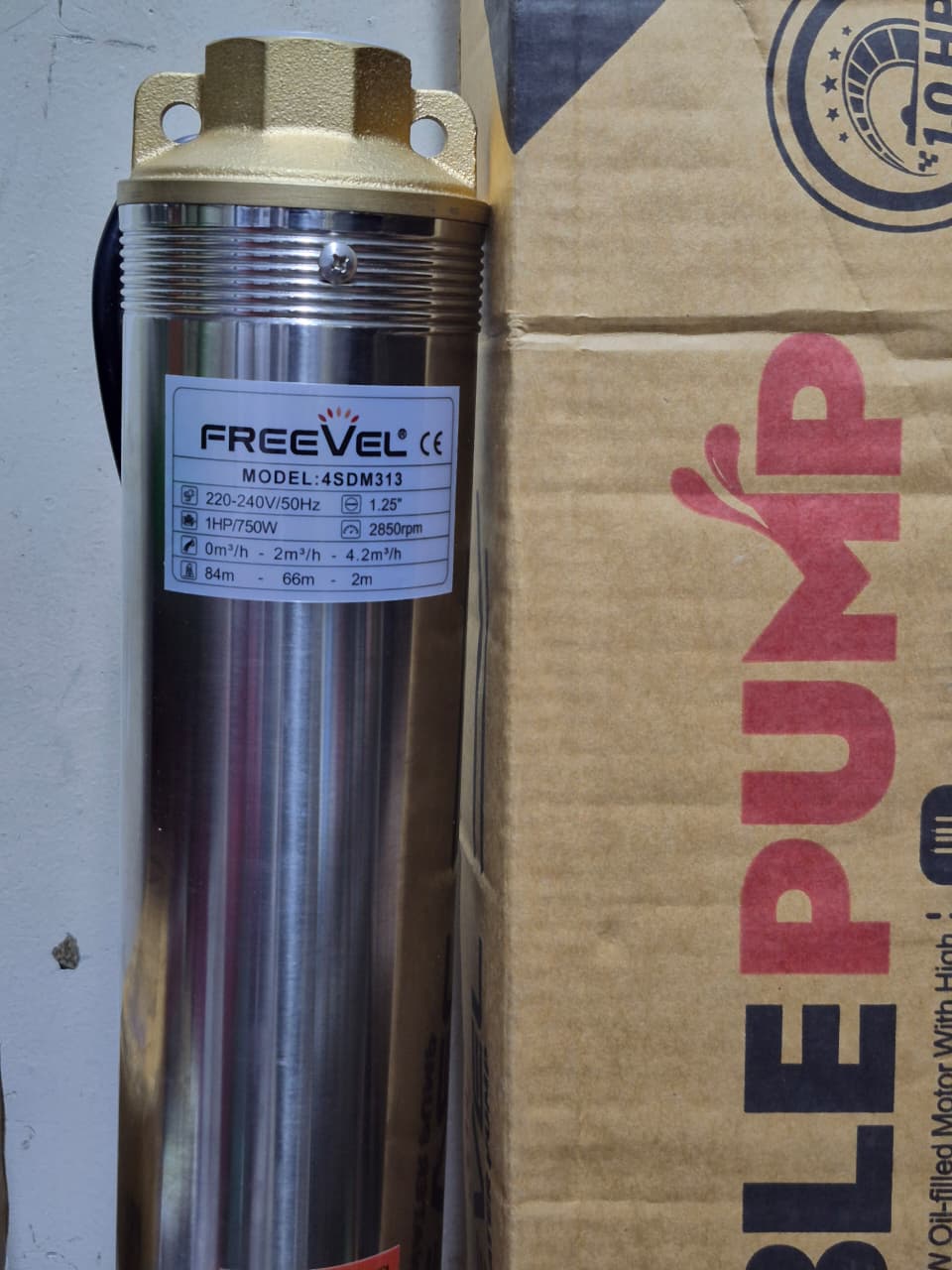

Freevel 4SDM313 1HP Submersible Pump – 84m Head

The Freevel 4SDM313 Submersible Pump is designed for reliable clean-water pumping from boreholes, wells, tanks and underground water sources. Powered by a 1HP / 0.75kW motor, it delivers a maximum pumping head of up to 84 metres, making it suitable for domestic, agricultural and light commercial water-supply systems.

Its stainless-steel body offers good durability and corrosion resistance, while the compact 4-inch design makes it suitable for borehole installations.

🔧 Key Features

• ⚡ Powerful 1HP / 0.75kW motor
• 📏 Maximum pumping head of 84 metres
• 💦 Maximum flow rate of up to 4.2m³/h
• 🔩 1.25-inch outlet
• 🌀 High-speed 2,850 rpm motor
• 🛡️ Stainless-steel pump body
• 🕳️ Suitable for boreholes and deep wells
• 🏡 Ideal for domestic, farm and commercial water supply
• ✅ Designed for clean-water applications

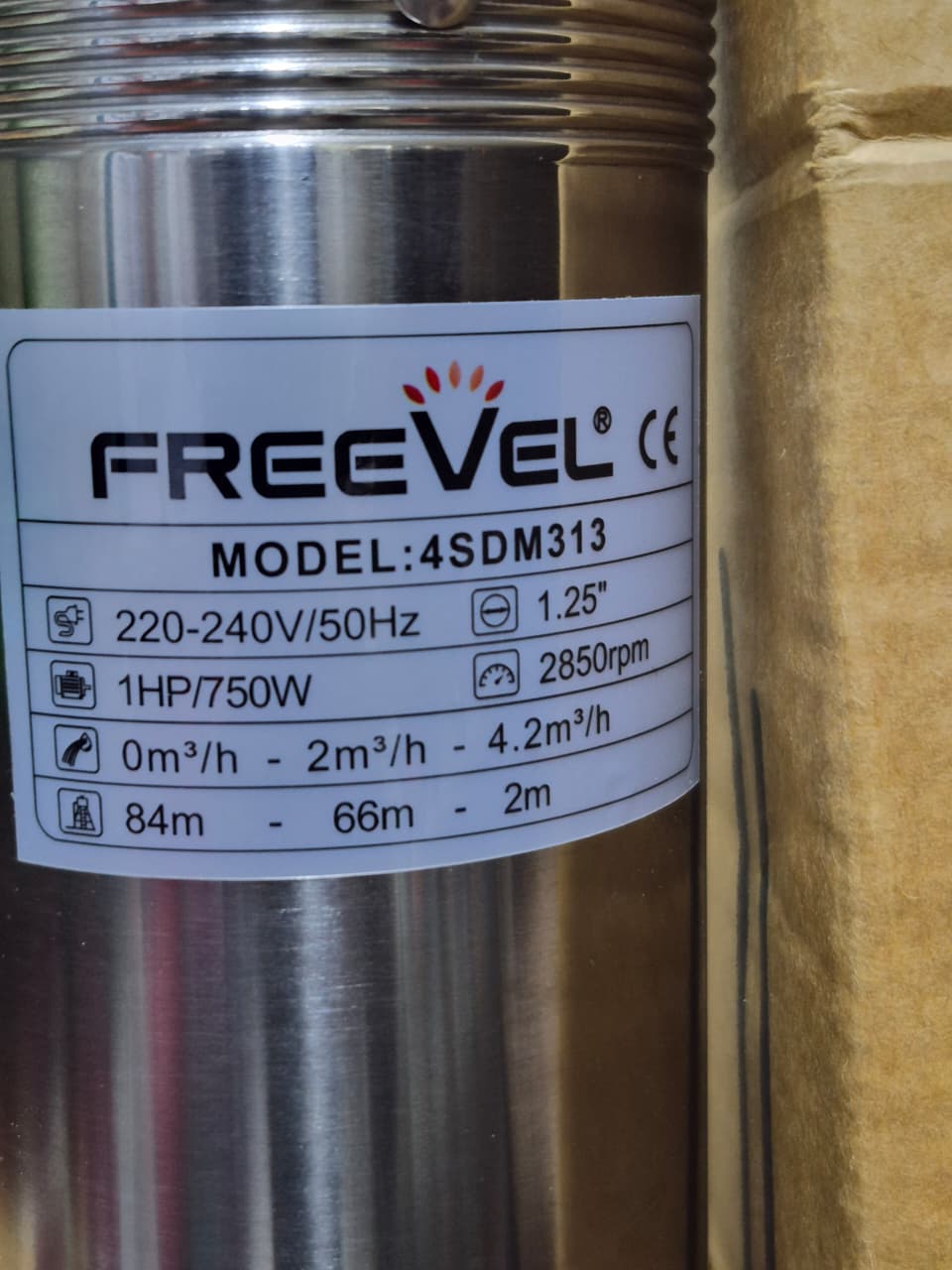

📋 Specifications

• Brand: Freevel
• Model: 4SDM313
• Product Type: Submersible Borehole Pump
• Voltage: 220–240V
• Frequency: 50Hz
• Motor Power: 1HP / 750W / 0.75kW
• Outlet Size: 1.25 inches
• Motor Speed: 2,850 rpm
• Maximum Flow Rate: 4.2m³/h
• Maximum Head: 84 metres
• Flow Performance:
  • 0m³/h at 84m head
  • 2m³/h at 66m head
  • 4.2m³/h at 2m head
• Installation Type: Submersible

🏡 Suitable For

• 🕳️ Borehole water pumping
• 🏠 Domestic water supply
• 🛢️ Filling elevated water tanks
• 🌱 Small-scale irrigation
• 🐄 Livestock water supply
• 🏢 Commercial building water systems
• 💧 Water transfer from deep wells
• 🚿 Pressure supply systems

The Freevel 4SDM313 1HP Submersible Pump provides dependable water delivery, efficient performance and a strong 84-metre pumping head for borehole and deep-well applications.
